MiR
Autonomous mobile robots from MiR can transport materials and goods within factories, warehouses, and other industrial settings, offering a flexible solution for automating internal logistics.
Their primary functions include transporting heavy payloads while safely and autonomously navigating dynamic environments, ultimately streamlining workflows and freeing up human labor for more valuable, strategic roles.
Benefits
How it Works
Specifications
Resources
How it Works
A MiR operates by autonomously navigating through industrial environments to perform a variety of tasks. It uses a combination of sensors, cameras, and advanced software algorithms to map its surroundings, avoid obstacles, and follow predefined paths or respond to real-time commands.
These versatile robots are designed to transport materials and streamline logistics in manufacturing and warehouse settings, enhancing efficiency and reducing the need for human intervention.
The MiR is a self-guided mobile robot with dynamic pathing capabilities designed for transportation of pallets and loads between destinations.
Once the pallet or load is securely placed on the stand, the MiR seamlessly proceeds to its next task, ensuring a smooth and uninterrupted workflow.
MiR models:
– MiR 250
– MiR 600
– MiR 1350

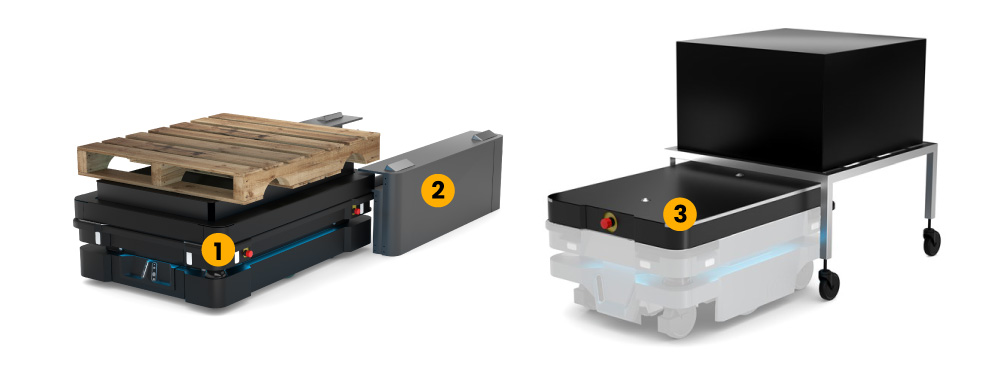

A Pick-Up and Drop-Off (P&D) Stand holds a pallet or load above the ground, leaving enough room for the MiR to drive under and retrieve it.
Hy-Tek has developed its own version of the P&D Stand to include pallet guides for centering pallets on the stand and a photo-eye mount to allow the MiR to communicate directly with the stand to verify the presence of a pallet.
The MiR Shelf Carrier 250 top module is a standard module for the MiR 250 that enables the collection and delivery of shelves, carts and other applications. This top module is an anchoring device that makes it possible to lock to shelves or carts and move them.
MiR
The MiR is a self-guided mobile robot with dynamic pathing capabilities designed for transportation of pallets and loads between destinations.
Once the pallet or load is securely placed on the stand, the MiR seamlessly proceeds to its next task, ensuring a smooth and uninterrupted workflow.
MiR models:
- MiR 250
- MiR 600
- MiR 1350
Pick Up and Drop Off Stand
A Pick-Up and Drop-Off (P&D) Stand holds a pallet or load above the ground, leaving enough room for the MiR to drive under and retrieve it.
Hy-Tek has developed its own version of the P&D Stand to include pallet guides for centering pallets on the stand and a photo-eye mount to allow the MiR to communicate directly with the stand to verify the presence of a pallet.
Shelf Carrier 250
The MiR Shelf Carrier 250 top module is a standard module for the MiR 250 that enables the collection and delivery of shelves, carts, and other applications. This top module is an anchoring device that makes it possible to lock to shelves or carts and move them.
MiR Models

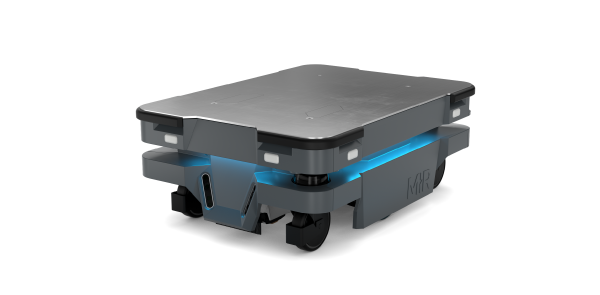

MiR250
The MiR250’s small footprint allows it to drive in spaces as narrow as 80 centimeters, including doors and elevators. This capability makes the AMR more agile than other AMRs on the market and highly adaptable for challenging environments.

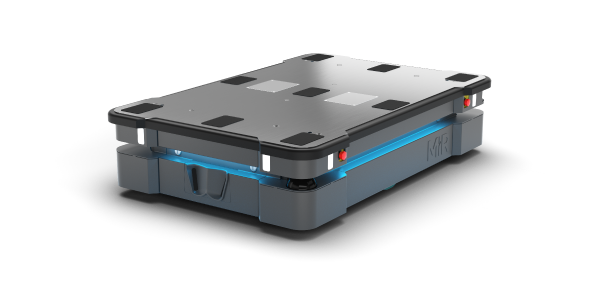

MiR600
The MiR 600 is the second largest MiR in the MiR Fleet. This unit was one of the first AMRs to have an IP Rating of 52, allowing it to move and work in high dust or even slightly damp environments.

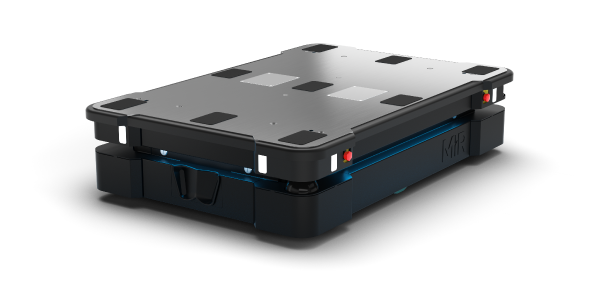

MiR1350
The MiR 1350 is the largest MiR in the MiR Fleet. Capable of carrying 1350 kg or 3000 lbs, there are few items that this unit cannot move. This unit was one of the first AMRs to have an IP Rating of 52, allowing to move and work in high dust or even slightly damp environments.
See MiR in Action!
Test your products and application in our 25,000 square-foot Innovation Lab where we develop cutting-edge solutions with robotic technologies.
Benefits
Elevate Your Operation
Solve complex challenges and meet new levels of operational efficiency with a cohesive ecosystem of intralogistics solutions and services – The IntraOneTM Platform.
Working With An Integrator
Leveraging our extensive expertise, Hy-Tek not only recognizes the uniqueness of each project but also tailors our solutions accordingly. We conduct in-depth assessments of your processes, workflows, and infrastructure, enabling us to craft and implement a seamless robotic system utilizing MiR robots.
This strategic approach not only elevates productivity but also minimizes disruptions, tackles challenges, and ensures the project’s success.
Specifications
| MiR250 | MiR600 | MiR1350 | |
|---|---|---|---|
|
Payload |
250 kg |
600 kg |
1,350 kg |
|
Maximum Speed |
2.0 m/s |
2.0m/s |
1.2 m/s |
|
Run Time w/ Max Payload |
Up to 13 hours |
Up to 8 hours 30 minutes |
Up to 7 hours |
|
Dimensions (LxWxH) |
800 x 580 x 300 mm |
1,350 x 910 x 322 mm |
1,350 x 910 x 322 mm |
Common Applications
Automotive
MiR robots can assist assembly line operations by automating the transportation of heavy components.
Fast-Moving Consumer Goods
These AMRs address the need for speed and accuracy in the fast-paced FMCG industry.
Third-Party Logistics
Known for their capability to transport large and heavy pallets, MiR robots are a great addition to make any 3PL more efficient.
Healthcare
Make the transportation of medical supplies faster and more accurate, so healthcare professionals can focus on their primary duties.
Food & Beverage
Carry cases or pallets of packaged food and beverage items.
